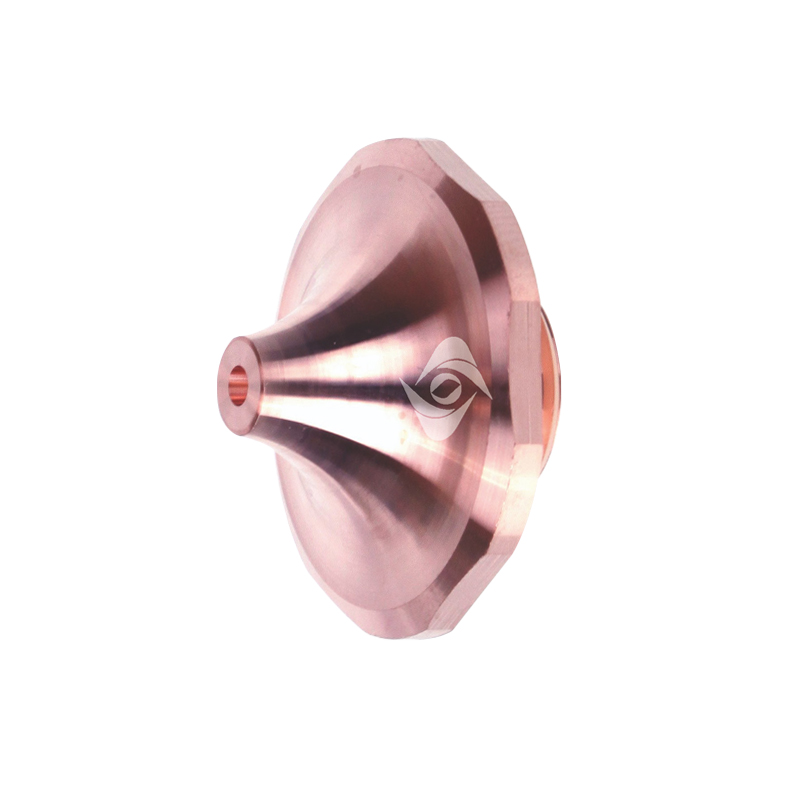

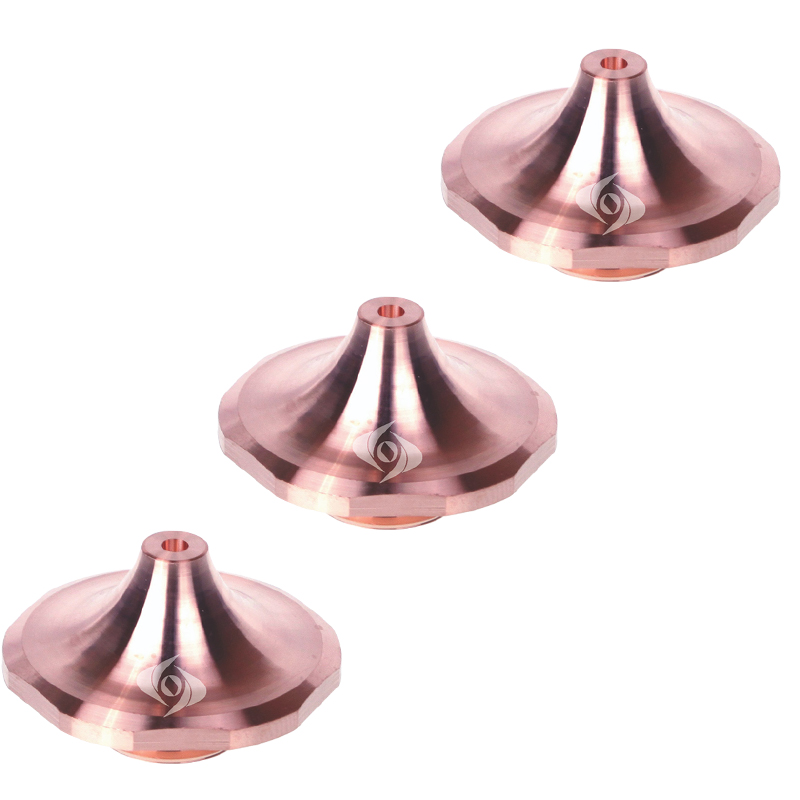

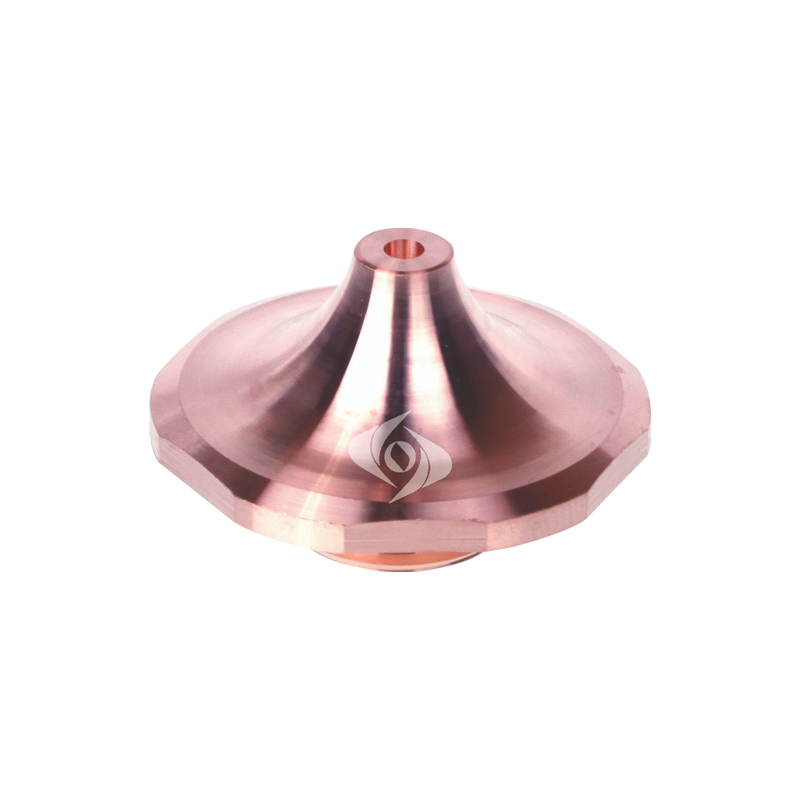

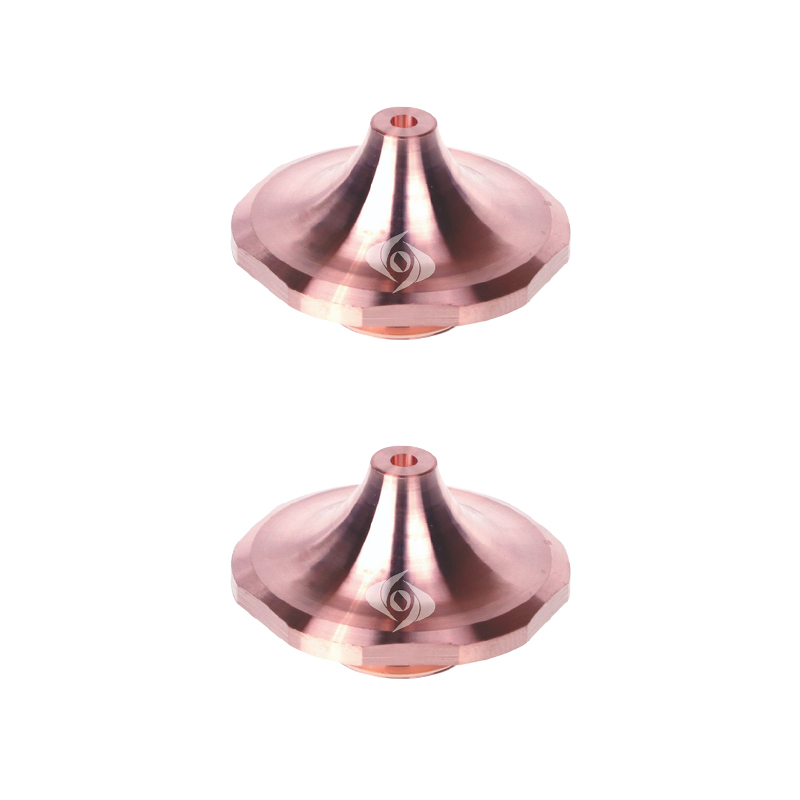

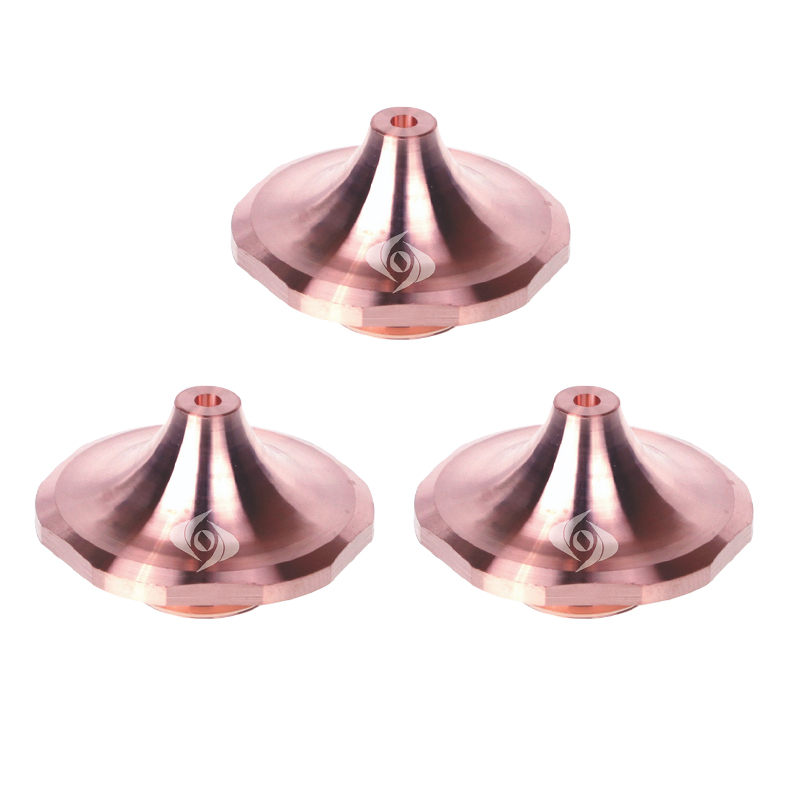

Laser nozzle TRUMPF EAB

Selling Units：Piece/Pieces

CUTTING MACHINE CONSUMABLE

SUITABLE FOR: EAB

LASER CUTTING CONSUMABLES CUTTING HEAD

Core Parameters and Specifications

• Dimensions: Outer diameter standard 25mm, height 15.5mm, threaded interface M12.

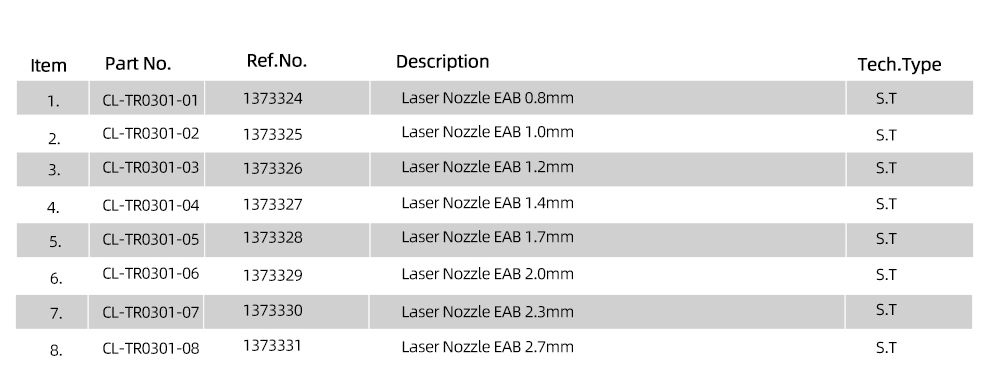

• Hole Diameter Series: Covers various sizes from 0.8mm to 2.7mm, suitable for cutting different sheet thicknesses.

• Corresponding Part Numbers: Official part numbers are typically 1373324 - 1373331 (corresponding

 to different hole diameters).

Key features

High-efficiency cutting: Combined with Trumpf's "X-Blast 2.0" technology, it can reliably use compressed air

 instead of expensive nitrogen, reducing gas costs by 75%.

* Reduced downtime: The increased distance between the nozzle and the sheet reduces the risk of collision,

resulting in a tested lifespan of over 3 months (compared to only a few days previously).

* Common failures: Slag blockage, heat deformation, or severe impacts during the cutting process are the

 main causes of nozzle failure.
